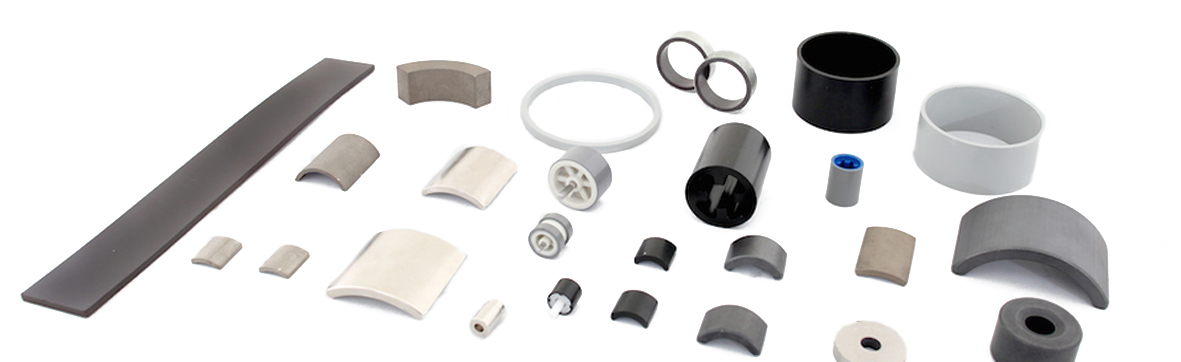

Magnets for motors and actuators

Due to performance requirements, motors and actuators have been transformed into electrical systems with permanent magnets.

This product line is designed to help the constructors of these devices from a design perspective as well as during the  prototyping and assembly processes of magnetic bodies. The magnetic properties of the powders used are designed to suit the type of performance required. Dimensions have been increasingly reduced to reduce the weight of the motor while improving performance.

We are able to make magnetic stators and rotors for application fields that range from industrial to civil automation systems, control valves, MEMS (microelectromechanical systems) actuators, and also in the hydraulic and pneumatic sectors.

For motors: DC motors, brushless motors, torque motors, pancake motors, linear motors, step motors and any other rotating electrical device up to a maximum diameter of 1,000 mm.

As regards design and electromagnetic calculations, we collaborate with various universities such as Reggio Emilia, Modena, Aquila and Pisa. Magnetic assemblies are supplied certified, tested and with a balancing test.

APPLICATION GROUPS

All our magnets are customised according to customer requirements or are made in close collaboration with the customer during the design phase.
MAGNETIC MATERIALS FOR MOTORS AND ACTUATORS ARE GROUPED AS FOLLOWS:
FERRITE MAGNETIC RUBBER
Magnetic flexible rubber made of plasto-ferrite, elastic, can be made in any shape. Maximum working temperature: 80°C.

Find out more
NEODYMIUM MAGNETIC RUBBER
Magnetic flexible rubber made of plasto-neodymium. No mould required. We create shapes and sizes depending on customer requirements; the same applies to magnetic properties and the rigidity of the profile. Maximum energy product (BH max): up to 8.5 MGOe, Residual induction (Br): up to 6500 Gauss. Suitable for industrial applications. Maximum working temperature: 100°C.

Find out more
PLASTO-NEODYMIUM
Compressed neodymium in the Top Quality line reaches the same performance as sintered neodymium magnets. Suitable for micro magnets or special shapes, these magnets are moulded. Residual induction (Br): up to 13500 Gauss. Maximum energy as regards design and electromagnetic calculations, we collaborate with various universities such as Reggio Emilia, Modena, L’Aquila and Pisa: up to 42 MGOe Maximum working temperature: 180°C

Find out more
NEODYMIUM
Sintered neodymium guarantees a high force of attraction and holding force. A variety of possible coating types available. Ideal for fastening heavy materials. Maximum working temperature: 200°C

Find out more
FERRITE
Sintered ferrite. Various types of magnetisation such as radial, axial, diametrical and Halbach. Characterised by no magnetic field around the central hole or around the exterior of the magnet. Maximum energy product (BH max): up to 4.95 MGOe Residual induction (Br): up to 4.6 kGs. Maximum working temperature: up to 300°C.

Find out more
SAMARIUM-COBALT
Magnet made of sintered samarium-cobalt. Powerful force of attraction. Various sizes and formats are available, without the use of moulds. Maximum energy product: up to 30 MGOe. Residual induction: up to 11.5 KGs. Magnet with very precise tolerance: + 0.05 mm. Suitable for high temperature applications: up to 350°C

Find out more
ALNICO
The magnetic field of alnico magnets is very stable, with very low losses at high temperatures and excellent resistance to corrosion. Maximum working temperature: 500°C

Find out more
PLASTO-MAGNETS
Magnets made by injection moulding of plastic materials and magnetic components made of neodymium or ferrite. Plasto-magnets can reach very high magnetic qualities. Residual induction (Br): up to 6 kGs. Maximum energy product (BH max): up to 6.2 MGOe Intrinsic coercive force (Hcj): up to 11.5 kOe. Maximum working temperature: up to 120°C.

Find out more
